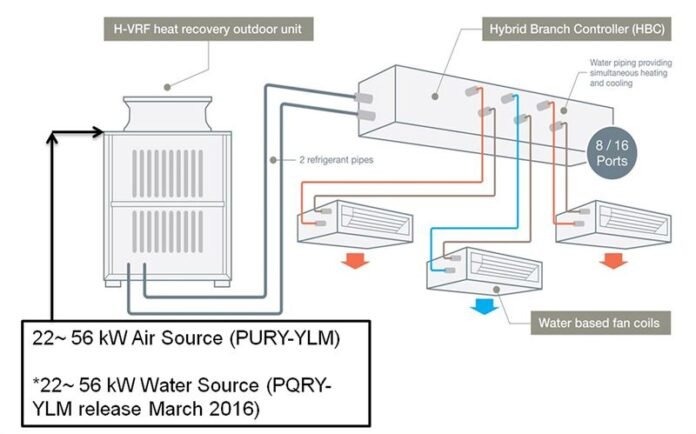

A Hybrid Air & Water Distribution System uses both air and water as carriers of thermal energy within a building.

• Air → mainly for ventilation and latent load (humidity) control.
• Water → mainly for sensible cooling/heating (temperature control).

👉 This combination makes the system more energy-efficient than all-air systems and better for comfort/IAQ than all-water systems.

🔹 System Configurations

1. DOAS + Chilled Beams (Active/Passive)

• DOAS (Dedicated Outdoor Air System):
  • Supplies fresh, dehumidified outdoor air.
  • Handles latent load and ventilation code compliance.
• Chilled Beams:
  • Passive or active beams circulate chilled water to handle sensible load.
  • Active beams use primary air from DOAS to induce room air movement.
• Result: Small ducts, excellent IAQ, efficient cooling.

2. DOAS + Fan Coil Units (FCUs)

• DOAS supplies dry ventilation air.
• FCUs (water-based) handle sensible load in rooms.
• Suitable for hotels, offices, schools.

3. Underfloor Air Distribution (UFAD) + Radiant Cooling/Heating

• UFAD system delivers conditioned air at low velocity from floor diffusers.
• Radiant panels/chilled ceilings (water-based) manage sensible loads.
• Provides thermal comfort + stratification benefits.

🔹 Working Principle

1. Fresh air is conditioned & dehumidified by DOAS.
2. DOAS delivers ventilation air to zones.
3. Chilled beams, radiant panels, or FCUs (using water) manage most of the sensible load.
4. BMS coordinates air & water flows for comfort and energy optimization.

🔹 Advantages

✅ Energy Efficiency

• Water has ~3,400× the heat capacity of air → smaller energy transport requirement.
• Reduced fan energy (smaller ducts).

✅ Improved Indoor Air Quality (IAQ)

• Ventilation air (DOAS) is 100% fresh and dehumidified.

✅ Comfort

• Better control of temperature and humidity separately.
• Reduced drafts, quieter operation.

✅ Space Saving

• Smaller ducts → higher ceiling heights, less shaft space.

✅ Sustainability

• Supports low-energy/green buildings (LEED, WELL).

🔹 Limitations / Challenges

• Condensation risk if chilled water temperature too low.
• Complex controls (coordination of DOAS + hydronic loop).
• Higher first cost than conventional all-air systems.
• Not ideal for very high latent loads without extra dehumidification.

🔹 Applications

• Hospitals & Labs (precise IAQ + temperature control).
• High-rise offices (reduced duct space + efficiency).
• Universities (lecture halls + dorms).
• Green buildings & net-zero projects.

🔹 Comparison: All-Air vs All-Water vs Hybrid

✅ In short:
Hybrid Air & Water Distribution = Air (for fresh air + humidity) + Water (for temperature control).
It delivers energy savings, comfort, and IAQ — making it the system of choice for advanced, sustainable buildings.
